#1823 Flat Ribbon Cable · Point-To-Point - Solid Color Coded
|
Available to Order
Product Options
| |
| |
|
Flat Ribbon Cable · Point-To-Point
Solid Color Coded
MIL-W-16878 Type C - 1000V · UL 2555 -300 V · CSA 90°C - 300 V

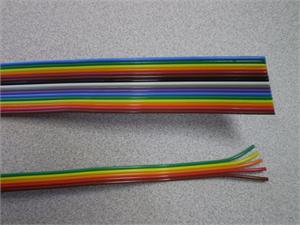

Description: Each conductor is stranded T.C. with extruded PVC insulation, bonded together to form a flat ribbon cable. Conductors separate easily for clean terminations with standard wire connectors, jacks and pins.
Ribbon cable saves space and time on circuit interconnecting assemblies, wiring harnesses, sliding drawers and drop assemblies and simplifies identification. Resists acid, alkalis, flame, moisture, oil, solvents and fungus.
Temperature Rating: -55°C to +105°C. Insulation meets or exceeds UL VW-1 vertical flame test.
DABURN
Cat. No. |
No. of
Cond. |
Size |
MIL
Type |
Str. |
Nom. Wall |
Nom. O.D. |
| IN. |
MM. |
IN. |
MM. |
| 1823/5 |
5 |
22 |
C |
7/30 |
0.016 |
0.41 |
.062 x .310 |
1.57 x 7.87 |
| 1823/10 |
10 |
22 |
C |
7/30 |
0.016 |
0.41 |
.062 x .620 |
1.57 x 15.75 |
| 1823/15 |
15 |
22 |
C |
7/30 |
0.016 |
0.41 |
.062 x .930 |
1.57 x 23.62 |
| 1823/20 |
20 |
22 |
C |
7/30 |
0.016 |
0.41 |
.062 x 1.24 |
1.57 x 31.50 |
| Standard Packaging: |
100 Ft., large put-ups available. |
| Color Code: |
1-Brown, 2-Red, 3- Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Gray, 9-White, 10-Black.
Beyond 10 conductors, code is repeated. |
|
One conductor stranded tinned copper, plastic insulation, nylon jacked with tinned copper shielded braid overall. (600V) (Supersedes AN-C-168)
|
Each conductor is 28 AWG, 7 strand of 36 AWG T.C. with .010" nominal wall extruded PVC insulation overall. Conductors are to provide .050" +/- .002", center to center conductor spacing for nominal impedance of 105 Ohms (measured ground-signal-ground).
|
Each conductor stranded tinned copper, polyvinylchloride insulation. Conductors are bonded to form flat ribbon cable. They are individually color coded and separate easily for terminations.
|
Each conductor stranded tinned copper, polyvinylchloride insulation. Conductors are bonded to form flat ribbon cable. Conductors are color coded and separate easily for terminations.
|
Color coded, Each conductor is stranded T.C. with extruded PVC insulation, bonded together to form a flat ribbon cable. Conductors separate easily for clean terminations with standard wire connectors, jacks and pins.
|
UL Style 20424 · 300 Volts · VW-1 - Daburn FEP ribbon cable reduces crosstalk, compared to PVC constructions. It provides hi-fidelity and dense signal transmission with low dielectric constant. It has a low coefficient of friction.
|
|
|
|
