#2605 Aircraft* Plastic Hook-Up Wire (Mil-C-7078 Shielded)
|
|
Product Options
| |
| |
| |
|

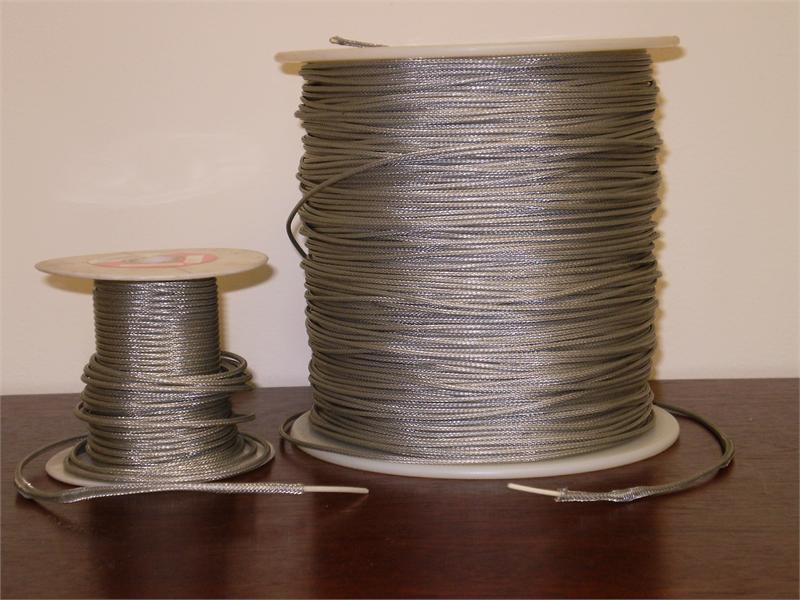

Aircraft* Plastic Hook-Up Wire
Mil-C-7078 Shielded (Supersedes AN-C-168) 600V
Description: One conductor stranded tinned copper, plastic insulation, nylon jacked with tinned copper shielded braid overall.
Color: White under shield. (Additional colors and types to order.)
Note: *MIL-W-7078 is no longer a current MIL Spec & these constructions are no longer approved for Aircraft usage.
| MIL-C-7078A Aircraft Plastic Hook-Up Wire |
DABURN
Cat. No. |
Size
AWG |
MIL
Designation |
Strand |
Nom. O.D. |
Standard
Packaging |
| IN. |
MM. |
| 2605/22 |
22 |
AN-22 TY I |
19/34 |
0.100 |
2.54 |
100', 1000' |
| 2605/20 |
20 |
AN-20 TY I |
19/32 |
0.110 |
2.79 |
100', 1000' |
| 2605/18 |
18 |
AN-18 TY I |
19/30 |
0.124 |
3.15 |
100', 1000' |
| 2605/16 |
16 |
AN-16 TY I |
19/29 |
0.139 |
3.53 |
100', 1000' |
| 2605/14 |
14 |
AN-14 TY I |
19/27 |
0.158 |
4.01 |
100', 1000' |
| 2605/12 |
12 |
AN-12 TY I |
19/25 |
0.177 |
4.50 |
100', 1000' |
May be ordered cut and/or stripped and/or marked to order. (Please Call)
|
Type 1 MIL-W-5086 - One conductor stranded tinned copper with plastic insulation, nylon jacket overall.
|
Type II, MIL-W-5086 - One conductor stranded tinned copper, plastic insulation, nylon lacquered glass braid. (105°C Rating, 600V Rating)
| |
|
|
|
